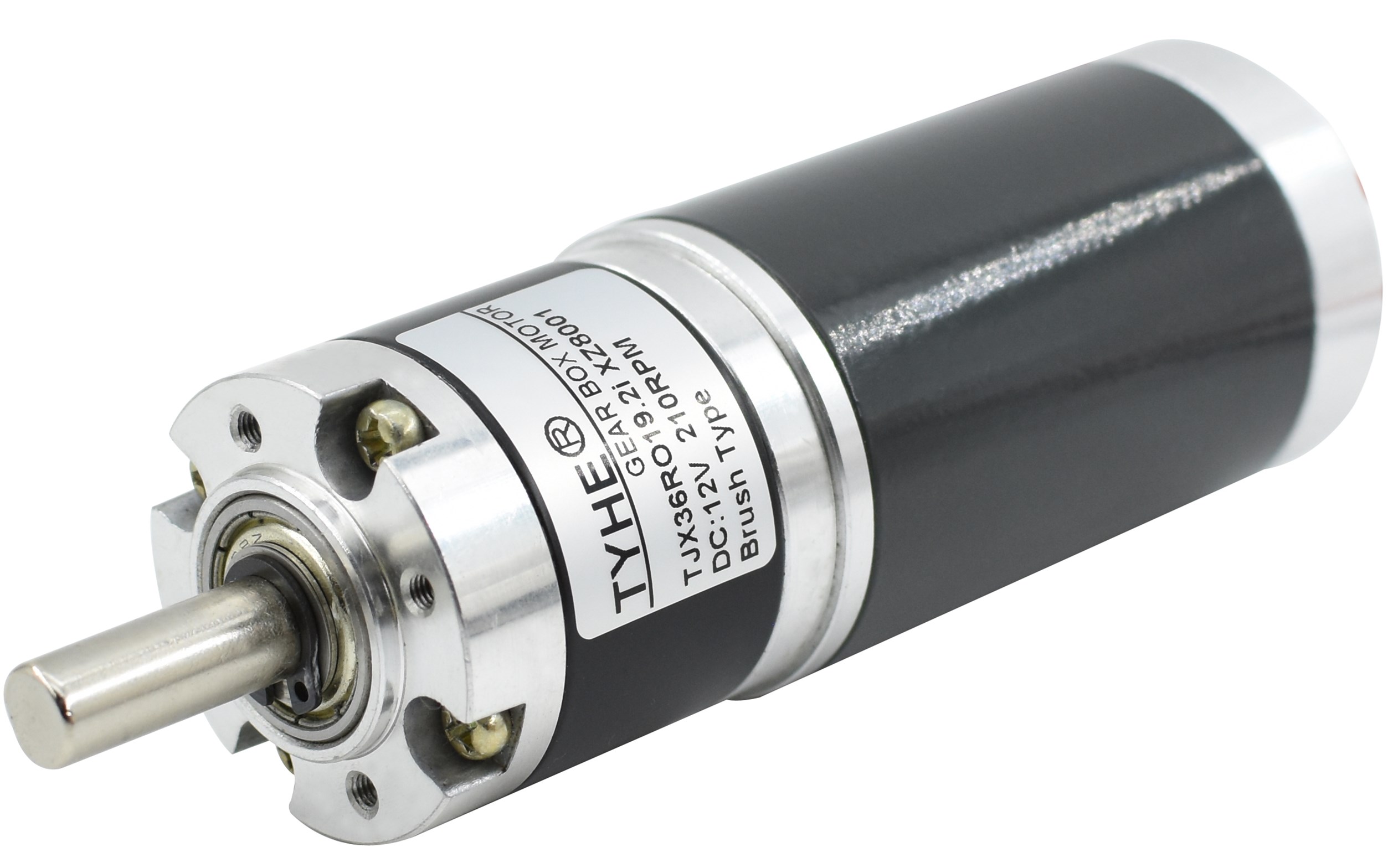

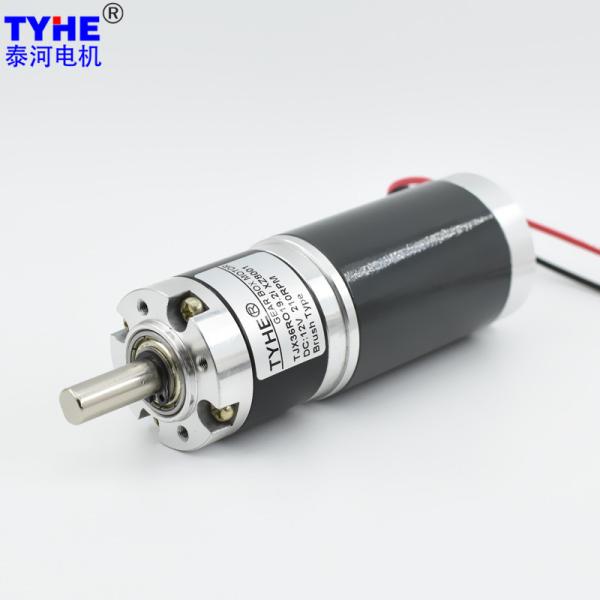

2800rpm 5nm 15 Watt Micro Planetary Gear Motor Electric Type

Brand Name : TYHE

Model Number : TJX36RO

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : Foam wrapped, carton packed

Size : D 36mm

Voltage : 12v~24v or customized

Speed : 1-1950rpm or Customized

Torque : 8N.m

Gear material : steel gear

Commutation : Brush /brushes /brushed

Type : DC Planetary Gear Motor, Mini Motor

Keywords : China OEM 36mm gear box 12v 18v 24v 2800rpm 10rpm low rpm big torque 5nm 60kgf 15 watt electric dc planetary gear reducer motor

Contact Now

Products Description

China OEM 36mm gear box 12v 18v 24v 2800rpm 10rpm low rpm big torque 5nm 60kgf 15 watt electric dc planetary gear reducer motor



Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 973.0 6.62 64.94 194.81 1081.1 7.43 65.60 196.80
28.2 90 5.2 692.3 6.62 91.26 273.78 769.2 7.43 92.20 276.59
37 81 13.7 262.8 5.95 216.39 649.17 292.0 6.68 218.61 655.83
37 81 19.2 187.5 5.95 303.26 909.79 208.3 6.68 306.37 919.12
37 81 26.9 133.8 5.95 424.89 1274.66 148.7 6.68 429.24 1287.73
37 81 35.0 102.9 5.95 552.83 1658.48 114.3 6.68 558.50 1675.49
45.8 73 51.0 70.6 5.37 725.99 2177.96 78.4 6.02 733.43 2200.29
45.8 73 71.0 50.7 5.37 1010.69 3032.06 56.3 6.02 1021.05 3063.15
45.8 73 100.0 36.0 5.37 1423.50 4270.50 40.0 6.02 1438.10 4314.30
45.8 73 139.0 25.9 5.37 1978.67 5936.00 28.8 6.02 1998.96 5996.88
54.7 65.6 189.0 19.0 4.82 2417.69 7253.06 21.2 5.41 2442.48 7327.45
54.7 65.6 264.0 13.6 4.82 3377.09 10000.00 15.2 5.41 3411.72 10000.00
54.7 65.6 369.0 9.8 4.82 4720.25 10000.00 10.8 5.41 4768.66 10000.00
54.7 65.6 514.0 7.0 4.82 6575.09 10000.00 7.8 5.41 6642.52 10000.00
54.7 65.6 721.0 5.0 4.82 9223.03 10000.00 5.5 5.41 9317.63 10000.00
64 59 699.0 5.2 4.34 8042.00 10000.00 5.7 4.87 8124.48 10000.00
64 59 977.0 3.7 4.34 10000.00 10000.00 4.1 4.87 10000.00 10000.00
64 59 1367.0 2.6 4.34 10000.00 10000.00 2.9 4.87 10000.00 10000.00
64 59 1911.0 1.9 4.34 10000.00 10000.00 2.1 4.87 10000.00 10000.00
64 59 2672.0 1.3 4.34 10000.00 10000.00 1.5 4.87 10000.00 10000.00
64 59 3736.0 1.0 4.34 10000.00 10000.00 1.1 4.87 10000.00 10000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1297.3 11.17 82.25 246.75 1729.7 15.08 83.25 249.75
28.2 90 5.2 923.1 11.17 115.60 346.79 1230.8 15.08 117.00 351.00
37 81 13.7 350.4 10.06 274.10 822.29 467.2 13.57 277.43 832.28
37 81 19.2 250.0 10.06 384.13 1152.40 333.3 13.57 388.80 1166.40
37 81 26.9 178.4 10.06 538.19 1614.56 237.9 13.57 544.73 1634.18
37 81 35.0 137.1 10.06 700.25 2100.74 182.9 13.57 708.75 2126.25
45.8 73 51.0 94.1 9.06 919.58 2758.74 125.5 12.23 930.75 2792.25
45.8 73 71.0 67.6 9.06 1280.20 3840.60 90.1 12.23 1295.75 3887.25
45.8 73 100.0 48.0 9.06 1803.10 5409.30 64.0 12.23 1825.00 5475.00
45.8 73 139.0 34.5 9.06 2506.31 7518.93 46.0 12.23 2536.75 7610.25
54.7 65.6 189.0 25.4 8.14 3062.40 9187.21 33.9 10.99 3099.60 9298.80
54.7 65.6 264.0 18.2 8.14 4277.64 10000.00 24.2 10.99 4329.60 10000.00
54.7 65.6 369.0 13.0 8.14 5978.98 10000.00 17.3 10.99 6051.60 10000.00
54.7 65.6 514.0 9.3 8.14 8328.44 10000.00 12.5 10.99 8429.60 10000.00
54.7 65.6 721.0 6.7 8.14 10000.00 10000.00 8.9 10.99 10000.00 10000.00
64 59 699.0 6.9 7.32 10000.00 10000.00 9.2 9.88 10000.00 10000.00
64 59 977.0 4.9 7.32 10000.00 10000.00 6.6 9.88 10000.00 10000.00
64 59 1367.0 3.5 7.32 10000.00 10000.00 4.7 9.88 10000.00 10000.00
64 59 1911.0 2.5 7.32 10000.00 10000.00 3.3 9.88 10000.00 10000.00
64 59 2672.0 1.8 7.32 10000.00 10000.00 2.4 9.88 10000.00 10000.00
64 59 3736.0 1.3 7.32 10000.00 10000.00 1.7 9.88 10000.00 10000.00

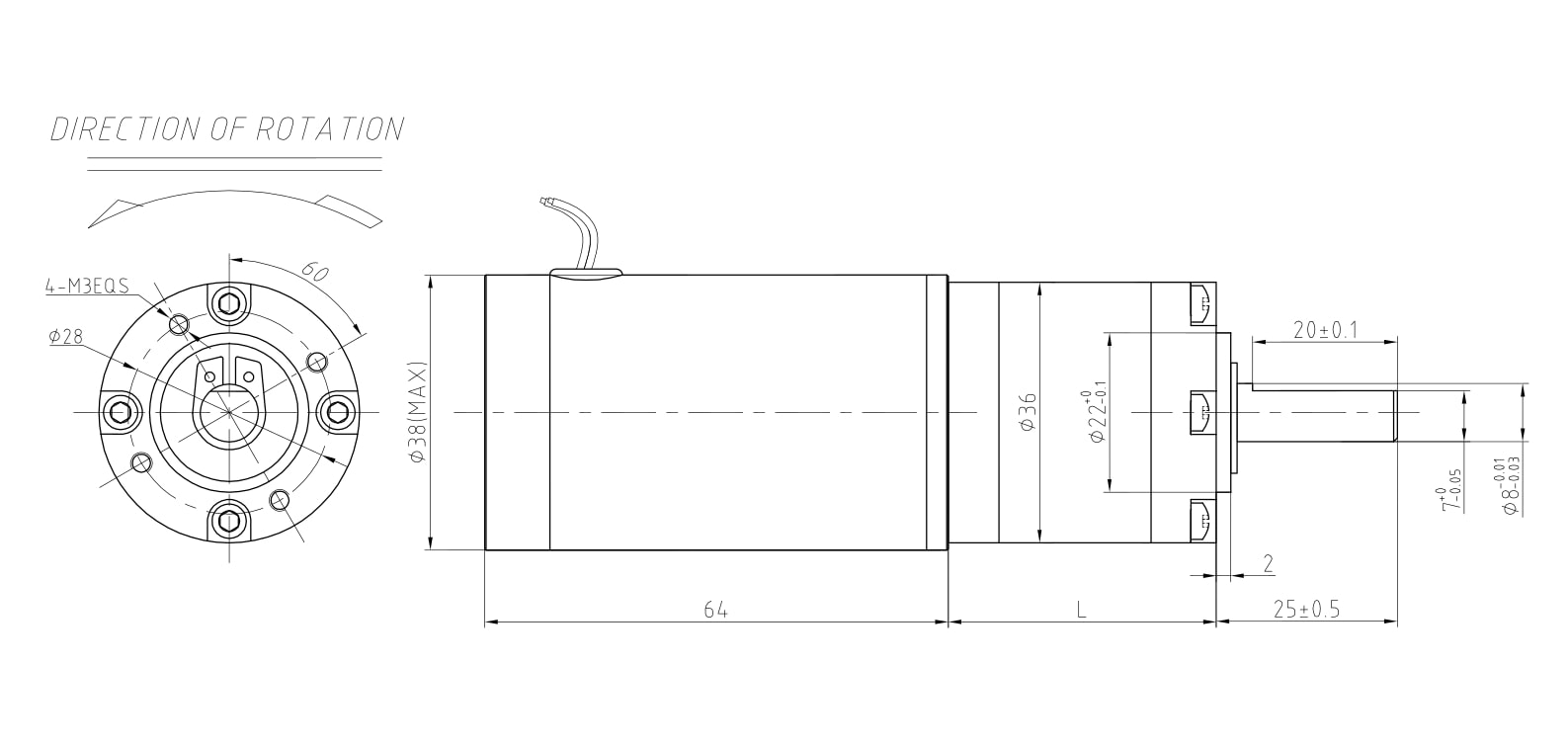

2D drawing

2800rpm 5nm 15 Watt Micro Planetary Gear Motor Electric Type


2800rpm 5nm 15 Watt Micro Planetary Gear Motor Electric Type

Please let us know your requirements and we will provide you with transmission solutions.

2800rpm 5nm 15 Watt Micro Planetary Gear Motor Electric Type

2800rpm 5nm 15 Watt Micro Planetary Gear Motor Electric Type
